Ka-Band beamforming and transceiver ASIC platform
The ENS92030 is a versatile multi-channel, Ka-Band frequency, beamforming transceiver IC for phased-array electronically steerable antenna systems.
The ENS92030 integrates 4 receive and 4 transmit paths operating at 17.7-21.2GHz and 27.5-30 GHz respectively, with each RF path containing independent 5-bit phase control and fine gain control to achieve accurate beam steering and gain compensation/weighting between antenna elements
The ENS92030 integrates 4 receive and 4 transmit paths operating at 17.7-21.2GHz and 27.5-30 GHz respectively, with each RF path containing independent 5-bit phase control and fine gain control to achieve accurate beam steering and gain compensation/weighting between antenna elements
查看 Ka-Band beamforming and transceiver ASIC platform 详细介绍：
- 查看 Ka-Band beamforming and transceiver ASIC platform 完整数据手册
- 联系 Ka-Band beamforming and transceiver ASIC platform 供应商

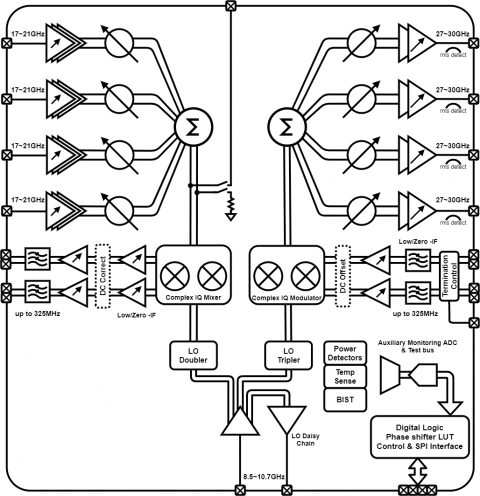

Block Diagram of the Ka-Band beamforming and transceiver ASIC platform
