JESD204B
The JESD204B controller IP is a highly optimized and silicon agnostic implementation of the JEDEC JESD204B.01 serial interface standard targeting both ASICs and FPGAs. The solution by default provides line-speeds of up to 12.5 Gbps per lane while guaranteeing data alignment and synchronization. The standard allows it to optionally by used up to 16 Gbps, but does not recommend running it faster due to the 8b 10b encoding.
The core enables quick and reliable deployment of both the transmitter (TX) and the receiver (RX) and comes with a tightly integrated optional transport layer, that can dynamically be configured to handle any Multiple-Converter Device Alignment, Multiple Lanes (MCDA-ML) requirements.
The IP comes with the widest parameter set available and has gone through extensive testing. The IP core is silicon proven, heavily tested in UVM regression environment and has been interoperability tested with key Data Converter ADC/DAC providers and leading SerDes PHY solutions.
The core enables quick and reliable deployment of both the transmitter (TX) and the receiver (RX) and comes with a tightly integrated optional transport layer, that can dynamically be configured to handle any Multiple-Converter Device Alignment, Multiple Lanes (MCDA-ML) requirements.
The IP comes with the widest parameter set available and has gone through extensive testing. The IP core is silicon proven, heavily tested in UVM regression environment and has been interoperability tested with key Data Converter ADC/DAC providers and leading SerDes PHY solutions.
查看 JESD204B 详细介绍：
- 查看 JESD204B 完整数据手册
- 联系 JESD204B 供应商

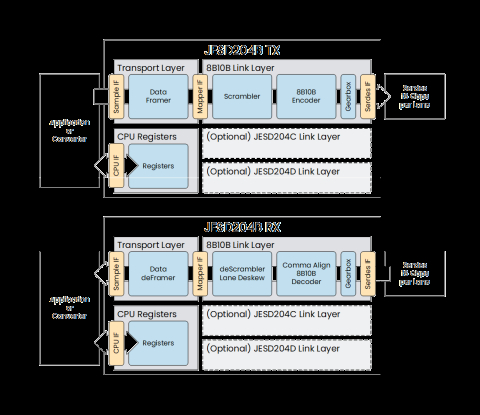

Block Diagram of the JESD204B
