Integer-N-PLL-based HF Frequency Synthesizer and Clock Generator with integrated Loop Filter and VCO
The TS_FS_9M70_X8 synthesizes 3.3V-square-wave FVCO frequencies within the HF range from 2.424MHz up to 9.697MHz, by steps of 18.9393kHz, and provides one fourth of fVCO on two other outputs, FDEM and FDRV, which exhibit selectively quadrature phase difference or no phase shift. TES can transfer this IP to other technologies upon request.
查看 Integer-N-PLL-based HF Frequency Synthesizer and Clock Generator with integrated Loop Filter and VCO 详细介绍：
- 查看 Integer-N-PLL-based HF Frequency Synthesizer and Clock Generator with integrated Loop Filter and VCO 完整数据手册
- 联系 Integer-N-PLL-based HF Frequency Synthesizer and Clock Generator with integrated Loop Filter and VCO 供应商

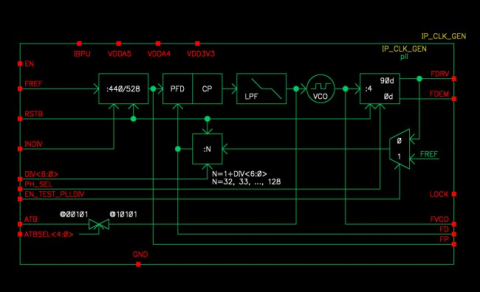

Block Diagram of the Integer-N-PLL-based HF Frequency Synthesizer and Clock Generator with integrated Loop Filter and VCO
