IEEE1588 & IEEE802.1AS PTP Transparent Clock (TC) core
The PTP Transparent Clock (TC) from NetTimeLogic is a fully scalable implementation of a Peer-To-Peer, One-Step Transparent Clock according to IEEE1588. It contains a Peer-Delay message processors which answers and measures the Peer-Delay to its neighbors and an On-The-Fly-Modifier unit which corrects the residence time of PTP Event-Messages. Each port is individual and only some common counter is shared between the ports. The number of ports can be freely chosen according to the requirements.
All datasets and algorithms are implemented completely in HW.
All datasets and algorithms are implemented completely in HW.
查看 IEEE1588 & IEEE802.1AS PTP Transparent Clock (TC) core 详细介绍:
- 查看 IEEE1588 & IEEE802.1AS PTP Transparent Clock (TC) core 完整数据手册
- 联系 IEEE1588 & IEEE802.1AS PTP Transparent Clock (TC) core 供应商

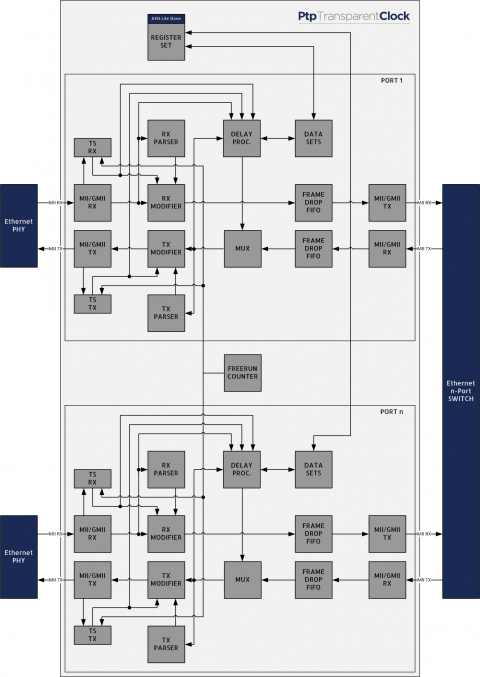

Block Diagram of the IEEE1588 & IEEE802.1AS PTP Transparent Clock (TC) core
