IEEE1588 & IEEE802.1AS PTP Ordinary Clock (OC) core
The PTP Ordinary Clock (OC) from NetTimeLogic is an extension to a single port of NetTimeLogic's PTP Transparent Clock (TC). It adds the Sync and Announce message processors to the design which allow synchronization of the clock according to IEEE1588. The OC will run in Slave or Master mode according to the configuration and Best-Master-Clock (BMC) algorithm. For resource optimization the OC can also be implemented as Slave-Only clock.
The OC is intercepting the path between an Ethernet PHY and an Ethernet MAC. This allows message injection in parallel to data transfers from/to the MAC.
All datasets and algorithms are implemented completely in HW.
The OC is intercepting the path between an Ethernet PHY and an Ethernet MAC. This allows message injection in parallel to data transfers from/to the MAC.
All datasets and algorithms are implemented completely in HW.
查看 IEEE1588 & IEEE802.1AS PTP Ordinary Clock (OC) core 详细介绍：
- 查看 IEEE1588 & IEEE802.1AS PTP Ordinary Clock (OC) core 完整数据手册
- 联系 IEEE1588 & IEEE802.1AS PTP Ordinary Clock (OC) core 供应商

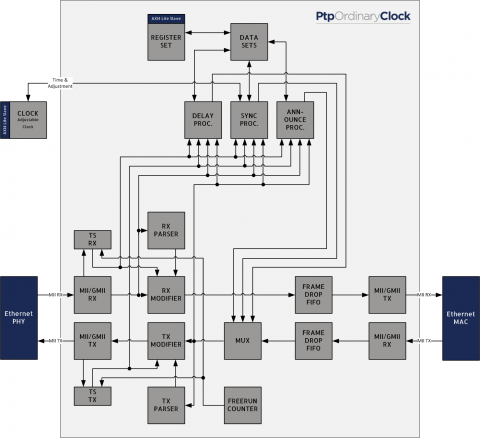

Block Diagram of the IEEE1588 & IEEE802.1AS PTP Ordinary Clock (OC) core
