IEEE 802.11n RF/Baseband/MAC 40nm
The Baseband IP is the IEEE 802.11n RF/Baseband/MAC wireless solution operating in a single stream mode for low-power standalones, embedded stations, access points, and Internet of Things (IoT) applications.
This IP supports both mandatory and optional features of the IEEE 802.11n standard and its corresponding Wi-Fi Alliance certifications. It can also be used in a variety of configurations, including IEEE 802.11b only and IEEE 802.11b/g or IEEEE 802.11b/g/n combinations.
The RF is a complete radio front-end, optimized for IEEE 802.11b/g/n SoC implementation based on industry-proven direct conversion transceiver architecture. This transceiver IP has fully integrated power amplifiers along with the capability to support various commercial
external FEM. RF IO ports are single-ended and a fractional-N synthesizer while the power amplifiers and LDOs are fully integrated for minimum BOM and PIN counts.
Furthermore, the IP has been designed to achieve the lowest power consumption with a combination of several proprietary techniques for low-power mobile wearable electronics and IoT applications.
Additionally it includes Wi-Fi Direct and Wi-Fi Aware peer-to-peer technologies,allowing great range of IoT usage, providing convenient and simple wireless connectivity, and enabling people to do more with their wireless products.
The IP also includes Wi-Fi Direct and Wi-Fi Aware peer-to-peer technologies, allowing great range of IoT usage, providing convenient and simple wireless connectivity, and enabling people to do more with their wireless products.
This IP supports both mandatory and optional features of the IEEE 802.11n standard and its corresponding Wi-Fi Alliance certifications. It can also be used in a variety of configurations, including IEEE 802.11b only and IEEE 802.11b/g or IEEEE 802.11b/g/n combinations.
The RF is a complete radio front-end, optimized for IEEE 802.11b/g/n SoC implementation based on industry-proven direct conversion transceiver architecture. This transceiver IP has fully integrated power amplifiers along with the capability to support various commercial
external FEM. RF IO ports are single-ended and a fractional-N synthesizer while the power amplifiers and LDOs are fully integrated for minimum BOM and PIN counts.
Furthermore, the IP has been designed to achieve the lowest power consumption with a combination of several proprietary techniques for low-power mobile wearable electronics and IoT applications.
Additionally it includes Wi-Fi Direct and Wi-Fi Aware peer-to-peer technologies,allowing great range of IoT usage, providing convenient and simple wireless connectivity, and enabling people to do more with their wireless products.
The IP also includes Wi-Fi Direct and Wi-Fi Aware peer-to-peer technologies, allowing great range of IoT usage, providing convenient and simple wireless connectivity, and enabling people to do more with their wireless products.
查看 IEEE 802.11n RF/Baseband/MAC 40nm 详细介绍：
- 查看 IEEE 802.11n RF/Baseband/MAC 40nm 完整数据手册
- 联系 IEEE 802.11n RF/Baseband/MAC 40nm 供应商

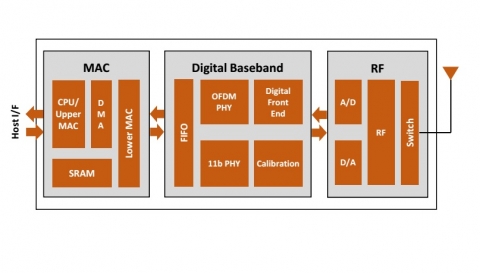

Block Diagram of the IEEE 802.11n RF/Baseband/MAC 40nm
