IEEE 1914.3 RoE Structure Agnostic Mapper/Demapper
Comcores Radio Over Ethernet Structure Agnostic Mapper/Demapper IP core is a silicon agnostic implementation of the structure agnostic mapping method described in the IEEE 1914.3 standard. The RoE IP-core takes multiple streams of CPRI data and map these into one or several 10G/25G Ethernet data streams and vice versa. The RoE IP core does as well allow for local injection and retraction of Ethernet traffic.
The RoE IP core allows easy configuration for various synchronization methods and works with CPRI in both slave and master mode. The RoE IP core has been successfully tested in HW and at system level.
The RoE IP core allows easy configuration for various synchronization methods and works with CPRI in both slave and master mode. The RoE IP core has been successfully tested in HW and at system level.
查看 IEEE 1914.3 RoE Structure Agnostic Mapper/Demapper 详细介绍：
- 查看 IEEE 1914.3 RoE Structure Agnostic Mapper/Demapper 完整数据手册
- 联系 IEEE 1914.3 RoE Structure Agnostic Mapper/Demapper 供应商

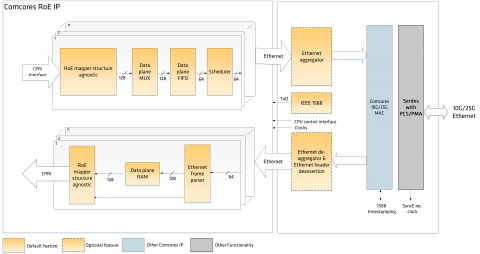

Block Diagram of the IEEE 1914.3 RoE Structure Agnostic Mapper/Demapper
