I3C Device Controller v1.2
The Arasan I3C Device Controller IP Implements Device Controller functionality as defined by the MIPI Alliance’s I3C Specification. The I3C bus is used for various sensors in the mobile/automotive system where an I3C Host Controller transfers data and control information between itself and various sensor devices. The I3C Device Controller IP can be easily integrated into the Sensor/Device Controllers with minimal gate count.
The I3C Device Controller is highly configurable (synthesis time) to provide an optimal solution based on the Device’s requirements. This includes, acting as a legacy I2C device, Support for Dynamic Address Assignment, HDR, and a configurable FIFO for data transfers. In addition, Optional I3C Device Controller functions like Interrupt generation, Hot-Join request generation. The I3C Device Controller IP provides direct signaling to connect to the IO Buffers (SCL and SDA).
The I3C Device Controller is highly configurable (synthesis time) to provide an optimal solution based on the Device’s requirements. This includes, acting as a legacy I2C device, Support for Dynamic Address Assignment, HDR, and a configurable FIFO for data transfers. In addition, Optional I3C Device Controller functions like Interrupt generation, Hot-Join request generation. The I3C Device Controller IP provides direct signaling to connect to the IO Buffers (SCL and SDA).
查看 I3C Device Controller v1.2 详细介绍:
- 查看 I3C Device Controller v1.2 完整数据手册
- 联系 I3C Device Controller v1.2 供应商

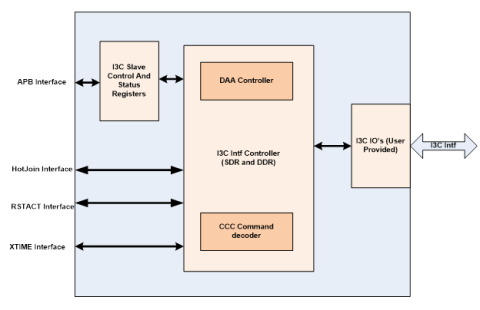

Block Diagram of the I3C Device Controller v1.2
