Highest code density, Low Power 32-bit Processor with optional DSP

特色

• High Performance 32-bit CPU/DSP
• 32-bit architecture implementing Beyond BA2 Instruction Set
• Single-cycle instruction execution on most instructions
• Fast and precise internal interrupt response
• Thirty-two, 32-bit general-purpose registers
• Custom user instructions
• 1.36 DMIPS / MHz
• Power Management Unit
• Power reduction from 2x to 100x
• Software controlled clock frequency in slow and idle modes
• Interrupt wake-up in doze and sleep modes
• Dynamic clock gating for individual units
• Advanced Debug Unit
• Conventional target-debug agent with a debug exception handler
• Non-intrusive debug/trace for both RISC and system
• Access and control of debug unit from RISC or via development interface
• Complex chained watchpoint and breakpoint conditions
• Integrated Tick Timer
• Task scheduling and precise time measuring
• Maximum timer range of 2^32 clock cycles
• Maskable tick-timer interrupt
• Single-run, restartable or continuous mode
• Programmable Interrupt Controller
• 32 maskable interrupt sources

优势

• Dense code: Highest code density in the industry means less on-chip memory
• Efficient: 1.36DMIPs/MHz
• Configurable: allows optimal implementation
• Small: reduces die size, power consumption
• Proven: Volume production proven core
• Frugal: Excellent power control increases battery life
• Easy: robust, industry standard development tool chain including debugger, simulator etc. for Windows and Linux.

可交付内容

• Verilog RTL source code
• Test bench in Verilog
• Silicon Proven Reference SOC/ASIC design
• Software development tools for Windows and Linux
• Operating systems and Board Support Package
• Evaluation board with silicon SOC/ASIC, running Linux
• Engineering support

应用

• Internet, networking and telecom
• Embedded
• Portable and wireless
• Home entertainment consumer electronics
• Automotive

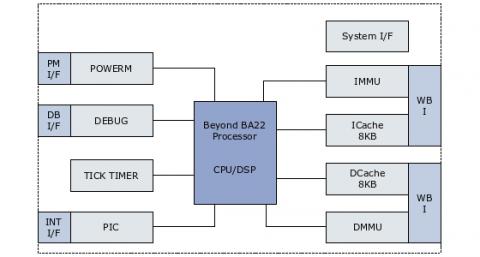

Block Diagram of the Highest code density, Low Power 32-bit Processor with optional DSP
