High speed universal LVDS Transceiver
Silvaco’s Low Voltage Differential Signaling (LVDS) I/O library is a high-frequency interface that uses differential signals for data transmission. Typical LVDS I/O applications include displays, printers, and other high-speed data interfaces. This LVDS IP includes a transmitter, receiver, and a novel equalization design supporting programmable pre-emphasis at the transmitter. Operating at 1 GHz, this LVDS supports data transfers rates up to 2 Gbs. Including built-in termination resistors, DFT compliance, and robust ESD, this LVDS I/O delivers the most reliable performance and is silicon proven.
查看 High speed universal LVDS Transceiver 详细介绍：
- 查看 High speed universal LVDS Transceiver 完整数据手册
- 联系 High speed universal LVDS Transceiver 供应商

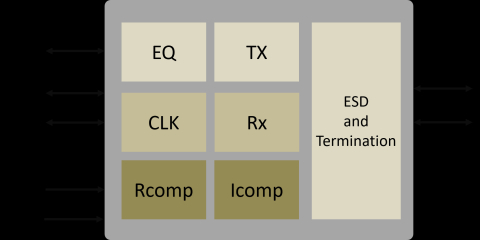

Block Diagram of the High speed universal LVDS Transceiver
