High Performance DDR5/4/3 Memory Controller
Mobiveil's DDR5/4/3 Memory Controller is a highly flexible and configurable design targeted for high performance enterprise server and real-time consumer applications that utilize computational elements like graphics controllers, general purpose, digital signal processors, etc. The controller architecture is carefully tailored to achieve reliable high-frequency operation, dynamic power management, error injection and support for rapid system debug.
DDR5/4/3 Controller is part of Mobiveil’s Storage and Memory controller family of IP solutions which also includes UMMC LPDDR3/2, NVM Express Controller (UNEX), Enterprise Flash Controller (EFC), and LDPC Encoder/Decoder IP cores.
The controller's simple, configurable and layered architecture is independent of application logic, PHY designs, implementation tools and, most importantly, the target technology. Mobiveil solution allows the licensees to easily migrate among FPGA, Gate array and Standard cell technologies optimally. Its flexible AXI System interface makes it easy to be integrated into wide range of applications. Mobiveil solution provides highly scalable bandwidth through configurable lanes, widths and frequencies.
DDR5/4/3 controller leverages Mobiveil’s years of experience in HyperTransport, PCI, PCIe and RapidIO technologies and the expertise in creating system validated IP solutions with RTL, synthesis, simulation, board and software elements to offer lowest risk in terms of compliance and inter operability.
DDR5/4/3 Controller is part of Mobiveil’s Storage and Memory controller family of IP solutions which also includes UMMC LPDDR3/2, NVM Express Controller (UNEX), Enterprise Flash Controller (EFC), and LDPC Encoder/Decoder IP cores.
The controller's simple, configurable and layered architecture is independent of application logic, PHY designs, implementation tools and, most importantly, the target technology. Mobiveil solution allows the licensees to easily migrate among FPGA, Gate array and Standard cell technologies optimally. Its flexible AXI System interface makes it easy to be integrated into wide range of applications. Mobiveil solution provides highly scalable bandwidth through configurable lanes, widths and frequencies.
DDR5/4/3 controller leverages Mobiveil’s years of experience in HyperTransport, PCI, PCIe and RapidIO technologies and the expertise in creating system validated IP solutions with RTL, synthesis, simulation, board and software elements to offer lowest risk in terms of compliance and inter operability.
查看 High Performance DDR5/4/3 Memory Controller 详细介绍：
- 查看 High Performance DDR5/4/3 Memory Controller 完整数据手册
- 联系 High Performance DDR5/4/3 Memory Controller 供应商

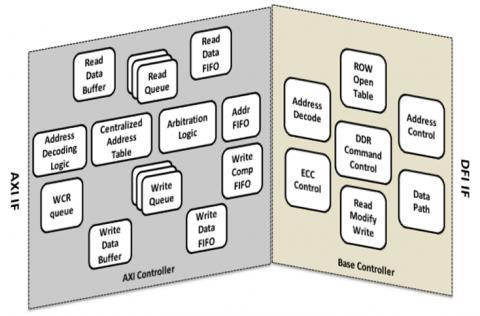

Block Diagram of the High Performance DDR5/4/3 Memory Controller
