HEVC, H.264, VP9, AVS2 and AV1 Multi format Decoder for UHD (up to 8K) 4:2:0 10bit
The WAVE517 is architected for real-time decoding video capability of 4Kp60 content at 450MHz in HEVC/H.265, AVC/H.264, VP9, AVS2, and AV1 standards, and may achieve up to 8K resolution. Also, it’s cost-effective as it is architected to pick out and reuse sharable blocks from various codec standards and apply to the common blocks; in which the IP architecture becomes streamlined with minimum logics and memories fitting into small-sized SoCs.
In addition to its superior 4K60fps performance, the WAVE517 also provides maximum bandwidth efficiency and exceptionally low power consumption, which are today’s most demanding requirements across all connected devices. It employs frame buffer compression technology named CFrame which can save on average 50~80% bandwidth access to memory.
The WAVE517 is suitable for applications across various industry segments including ultra-high-definition televisions(UHDTVs), set-top boxes(STBs), VR·ARs, smartphones, tablets, data servers, and any others with super-high resolution.
查看 HEVC/H.265, H.264, VP9, AV1 and AVS2 Multi format Decoder IP for 4K 60fps 详细介绍:
- 查看 HEVC/H.265, H.264, VP9, AV1 and AVS2 Multi format Decoder IP for 4K 60fps 完整数据手册
- 联系 HEVC/H.265, H.264, VP9, AV1 and AVS2 Multi format Decoder IP for 4K 60fps 供应商

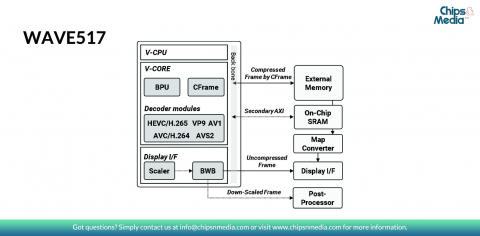

Block Diagram of the HEVC/H.265, H.264, VP9, AV1 and AVS2 Multi format Decoder IP for 4K 60fps
