HEVC/H.265, H.264 and AVS2 Multi format Decoder IP for 4K 60fps

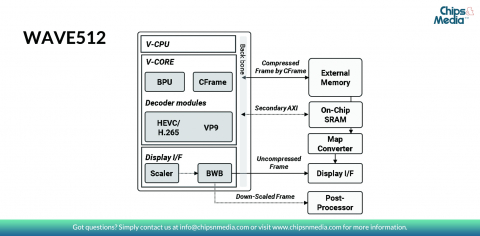

Chips&Media’s WAVE512 is one of the most advanced hardware video decoder IP core which supports the next generation HEVC(High-Efficiency Video Coding) standard known as H.265, AVC/H.264 and Chinese AVS2 with optimized size and stable decoding performance.


The WAVE512 is the 2nd generation video IP which is enhanced performance for high-end UHD SoC. It requires only about 450MHz clock frequency to decode 3840x2160 60fps video or 3840x2160 30fps two-channel videos with different video standards.

In addition to its superior 4K 60fps performance, the WAVE512 also provides maximum bandwidth efficiency and exceptionally low power consumption, which are today’s most demanding requirements across all connected devices. It employs frame buffer compression technology named CFrame which can save on average 50~70% bandwidth access to memory.

The WAVE512 is suitable for applications across various industry segments including ultra-high-definition televisions(UHDTVs), set-top boxes(STBs), VR·ARs, smartphones, tablets, and any others with super-high resolution.
