HDMI 2.1 Tx- Rx PHY & Controller IP (Silicon Proven in TSMC 28HPC+)
The HDMI V2.1 Tx provides a complete single-link HDMI transmitter function complies with HDMI specification version 2.1. It consists of two modules, a physical layer and a link module. The PHY is upper compatible with DVI transmitter and implemented as a hard IP based on an TSMC 28nm HPC+ process, while the link module is implemented as a synthesizable soft IP. Built-in High-bandwidth Digital Content Protection (HDCP) cipher function protects the transmission of audio-visual contents.
The HDMI V2.1 Rx provides a complete single-link HDMI receiver function complies with HDMI specification version 2.1. It consists of two modules, a physical layer (PHY) and a link module. The PHY is upper compatible with DVI receiver and implemented as a hard IP based on an TSMC 28nm HPC+ process, while the link module is implemented as a synthesizable soft IP. Built-in High-bandwidth Digital Content Protection (HDCP) cipher function protects the transmission of audio-visual content.
The HDMI V2.1 Rx provides a complete single-link HDMI receiver function complies with HDMI specification version 2.1. It consists of two modules, a physical layer (PHY) and a link module. The PHY is upper compatible with DVI receiver and implemented as a hard IP based on an TSMC 28nm HPC+ process, while the link module is implemented as a synthesizable soft IP. Built-in High-bandwidth Digital Content Protection (HDCP) cipher function protects the transmission of audio-visual content.
查看 HDMI 2.1 Tx- Rx PHY & Controller IP (Silicon Proven in TSMC 28HPC+) 详细介绍：
- 查看 HDMI 2.1 Tx- Rx PHY & Controller IP (Silicon Proven in TSMC 28HPC+) 完整数据手册
- 联系 HDMI 2.1 Tx- Rx PHY & Controller IP (Silicon Proven in TSMC 28HPC+) 供应商

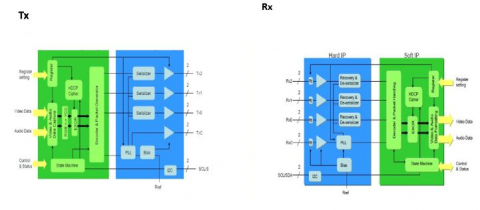

Block Diagram of the HDMI 2.1 Tx- Rx PHY & Controller IP (Silicon Proven in TSMC 28HPC+)
