HDMI 2.1 Rx PHY & Controller IP, Silicon Proven in TSMC 28HPC+
The HDMI V2.1 Rx complies with version 2.1 of the HDMI specification and offers a full single-link HDMI receiver function. It is made up of two modules: a link module and a physical layer (PHY). The connection module is implemented as a synthesizable soft IP, whilst the PHY is upper compatible with the DVI receiver and implemented as a hard IP. The transmission of audio-visual content is secured by an integrated High-bandwidth Digital Content Protection (HDCP) encryption function.
查看 HDMI 2.1 Rx PHY & Controller IP, Silicon Proven in TSMC 28HPC+ 详细介绍：
- 查看 HDMI 2.1 Rx PHY & Controller IP, Silicon Proven in TSMC 28HPC+ 完整数据手册
- 联系 HDMI 2.1 Rx PHY & Controller IP, Silicon Proven in TSMC 28HPC+ 供应商

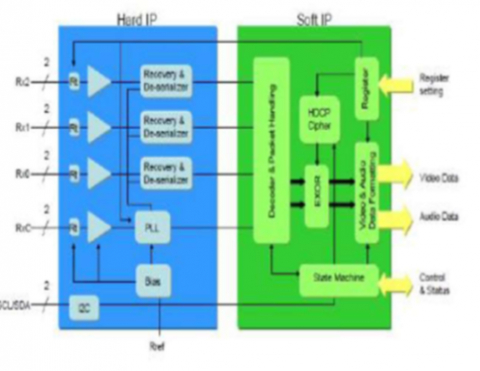

Block Diagram of the HDMI 2.1 Rx PHY & Controller IP, Silicon Proven in TSMC 28HPC+
