Hash Crypto Engine
With a flexible wrapper supporting a wide selection of programmable hashing modes (SHA-1, SHA-224, SHA-256, SHA-384, SHA-512 and MD-5) and several options of data interface, the Hash crypto core is an easy-to-use solution with predictable resources and performances on ASIC and FPGA.
特色
- ASIC and FPGA
- Supports:
- SHA-1
- SHA-224
- SHA-384
- SHA-512
- SM3
- MD5
- Supports HMAC
- Message padding in software or hardware
- Low power feature
- Data interface: AMBA (AHB/AXI) with optional DMA
- AMBA (APB, AXi-4 Lite) Configuration Interface
- Control interface: APB/AXI4-lite
优势
- Off-the-shelf, predictable and silicon-proven solution
- Logic footprint optimized to used hash functions
- Supports several hash functions
- Easy to integrate
- User-friendly Software API
- Portable and optimized to ASIC or FPGA technology
可交付内容
- Netlist or RTL
- Scripts for synthesis
- Self-checking Testbench based on FIPS vectors
- Datasheet
- Integration guide
应用
- Digital signature
- Key derivation

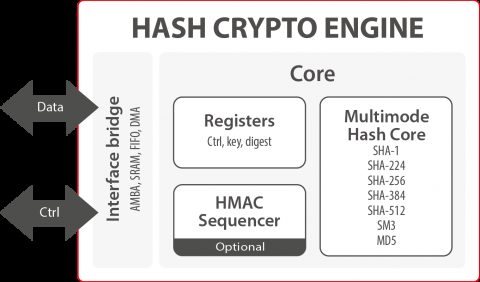

Block Diagram of the Hash Crypto Engine
