H.264 Video Over IP – HD Decoder Subsystem
This Video Over IP Subsystem integrates H.264 Decompression, Transport Stream and RTP/UDP/IP de-capsulation to enable the rapid development of complete video streaming products. Hardware reference designs and customization services complete the solution.
The subsystem uses the Low-Latency AVC/H.264 Baseline Profile Decoder Core and the RTP and UDPIP, hardware stacks available from CAST. Flexible interfaces allow easy integration of video, memory, and network controllers, and AXI4-Lite slave interfaces allow a host processor to access all control and status registers. An optional custom logic module allows standalone, processor-free operation and provides access to control and status registers via UDP packets. Video and stream data are transferred among the subsystem’s modules using AXI-Stream, making removing or adding modules straightforward.
The subsystem can decode constraint baseline streams, encapsulated in RTP or plain UDP and features, sub-frame latency (no frame buffers are implemented).
The subsystem uses the Low-Latency AVC/H.264 Baseline Profile Decoder Core and the RTP and UDPIP, hardware stacks available from CAST. Flexible interfaces allow easy integration of video, memory, and network controllers, and AXI4-Lite slave interfaces allow a host processor to access all control and status registers. An optional custom logic module allows standalone, processor-free operation and provides access to control and status registers via UDP packets. Video and stream data are transferred among the subsystem’s modules using AXI-Stream, making removing or adding modules straightforward.
The subsystem can decode constraint baseline streams, encapsulated in RTP or plain UDP and features, sub-frame latency (no frame buffers are implemented).
查看 H.264 Video Over IP – HD Decoder Subsystem 详细介绍：
- 查看 H.264 Video Over IP – HD Decoder Subsystem 完整数据手册
- 联系 H.264 Video Over IP – HD Decoder Subsystem 供应商

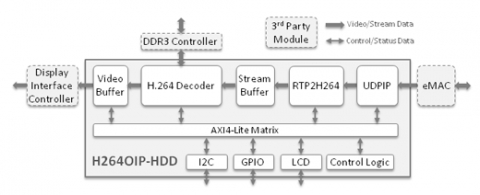

Block Diagram of the H.264 Video Over IP – HD Decoder Subsystem
