Gigabit Ethernet Media Access Controller IP

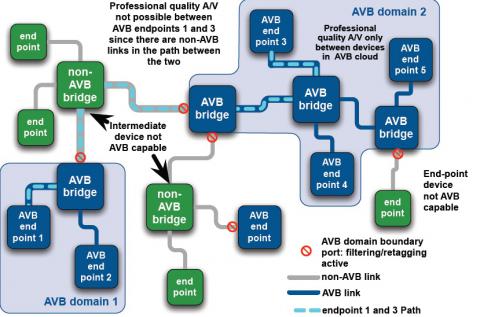

The Gigabit Ethernet Media Access Controller IP is compliant with the Ethernet IEEE 802.3-2002 standard. In addition, the Gigabit Ethernet MAC with AVB (Audio Video Bridging) supports the technical standards developed by the (IEEE) Audio Video Bridging Task Group of the IEEE 802.1 standards committee. An AVB MAC supports protocols that differ from standard Ethernet protocols in four significant ways:
