The FPD LVDS Display Interface IP Core interfaces parallel 18-bit/24-bit RGB Pixel Data with display timing VSYNC, HSYNC, Data Enable, and Pixel Clock to a FPD LVDS compliant display panel via 3 or 4 LVDS Differential Data Pairs and 1 LVDS Differential Clock Pair.
- Supports 3 and 4 data and 1 clock LVDS differential pairs
- 18 / 24 bits-per-pixel (typically RGB or YCbCr)
- Example Range of Video Formats:
- HD 1280x720p
- Full HD 1920x1080p
- Cinema Full HD 2560x1080p
- UHD 4K x 2K 3840x2160p
- Dual Port LVDS Panel Support Provided
- Supports standardized FPD-Link Panels
- Compatible with commercial LVDS ICs:
- SN65LVDS*, SN75LVDS*,DS90CR*, DS90UR*, THC63LVD
- Supports 600 Mbps per data pair
- Differential Driver per data pair supplied by user from foundry technology library
- Fully-synchronous, synthesizable Verilog RTL core, with rising-edge clocking, no gated clocks, and no internal tri-states, for easy integration into FPGA or ASIC design flows.
- With DB9000 LCD Controller IP forms full Display System Solution for LVDS Interface panels
- Verilog RTL Source or technology-specific netlist.
- Comprehensive testbench suite with expected results.
- Synthesis scripts.
- Installation & Implementation Guide.
- Technical Reference Manual.

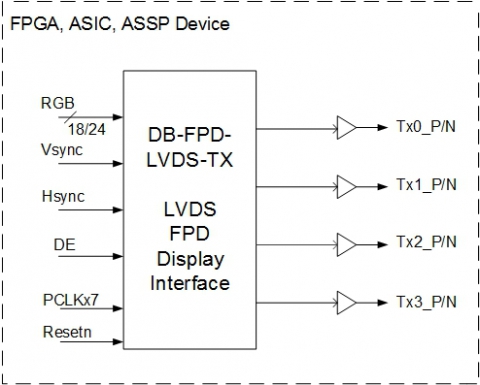

Block Diagram of the FPD LVDS Display Interface - 1 & 2 Port LVDS Panels
