FlexCAN Controller for CAN 2.0 with CAN-FD

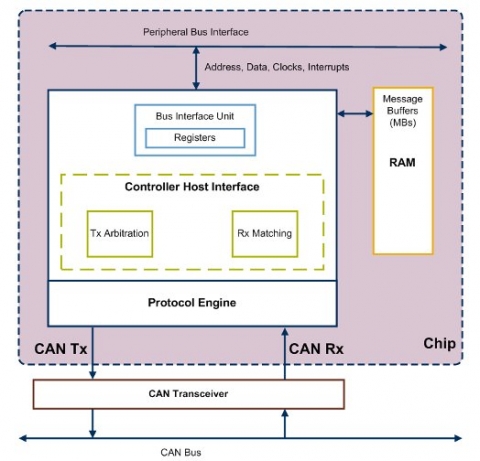

The FlexCAN controller is a highly configurable, synthesizable core implementing the CAN protocol (ISO 11898-1), CAN with Flexible Data rate (CAN FD), and CAN 2.0 B protocol specifications, built from silicon-proven technology from NXP Semiconductors.

特色

Full implementation of CAN FD and CAN 2.0 B

Standard/extended data frames
Up to 8Mbit/s
0-64 bytes data length

Compliant with ISO 11898-1
Flexible mailboxes configurable

To store 0-8, 16, 32, or 64 data bytes
As receive or transmit

Individual Rx mask register per mailbox
Full featured Rx FIFO, stores up to 6 frames
Transmission abort capability
Listen-only mode
Loop-back mode supporting self-test operation
Programmable transmission priority scheme
Time stamp based on 16-bit free-running timer with an optional external time tick
Low power modes with programmable wake-up on bus activity or matching with received frames (pretended networking)
Transceiver delay compensation for CAN FD Tx at faster data rates
Detection and correction of memory read (ECC)
SystemVerilog integration testbench including a number of usage scenarios
