Ethernet TSN MAC 10G/25G
the use of the MAC in high speed time-critical applications.
The MAC-core performs the Link function of the 10G/25G Ethernet Standard and is a low latency cut-through implementation, while keeping size at a minimum.
The core is fully configurable and interfaces easily to 10G/25G PCS, and can optionally include IEEE 1588 Timestamping Unit (TSU). The Ethernet MAC Core, on the Client side, implements a 64-bit AXI-S interface for Express and Preemptable traffic respectively while having a standard 64-bit XGMII interface on the PHY side.
查看 Ethernet TSN MAC 10G/25G 详细介绍:
- 查看 Ethernet TSN MAC 10G/25G 完整数据手册
- 联系 Ethernet TSN MAC 10G/25G 供应商

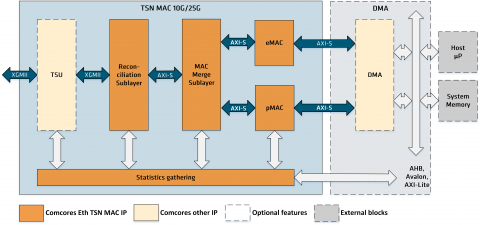

Block Diagram of the Ethernet TSN MAC 10G/25G
