Ethernet Switch 10G
Comcores Ethernet Switch 10G IP core is a highly configurable and size optimized implementation of a non-blocking switch that allows continuous transmissions between 10G Ethernet ports. The switch
supports MAC learning, VLAN 802.1Q, and multicast. Each port provides a native interface for XGMII Ethernet PHY devices.
supports MAC learning, VLAN 802.1Q, and multicast. Each port provides a native interface for XGMII Ethernet PHY devices.
查看 Ethernet Switch 10G 详细介绍：
- 查看 Ethernet Switch 10G 完整数据手册
- 联系 Ethernet Switch 10G 供应商

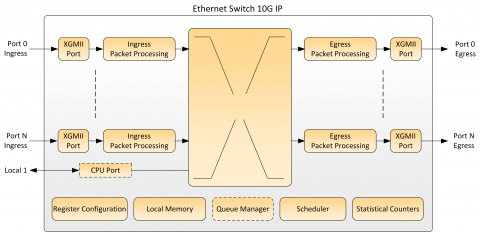

Block Diagram of the Ethernet Switch 10G
