Ethernet MAC 40G/100G
Comcores Ethernet MAC 40G/100G IP solution enables the host to communicate data using the IEEE 802.3 standard for the respective speeds and is suited for use in networking equipment such as switches and routers. Comcores Ethernet MAC is silicon-proven and designed for easy integration into ASICs and FPGAs.
The Client-side interface is a 128-bit AXI-S and comes with 128-bit XLGMII or CGMII interfaces on the PHY side. The Ethernet MAC IP features a compact and low latency solution, it is highly configurable and can optionally include IEEE 1588 Timestamping Unit (TSU). The Ethernet MAC IP is prepared for easy integration with Comcores Ethernet PCS 40G/100G IP solution.
The Client-side interface is a 128-bit AXI-S and comes with 128-bit XLGMII or CGMII interfaces on the PHY side. The Ethernet MAC IP features a compact and low latency solution, it is highly configurable and can optionally include IEEE 1588 Timestamping Unit (TSU). The Ethernet MAC IP is prepared for easy integration with Comcores Ethernet PCS 40G/100G IP solution.
查看 Ethernet MAC 40G/100G 详细介绍：
- 查看 Ethernet MAC 40G/100G 完整数据手册
- 联系 Ethernet MAC 40G/100G 供应商

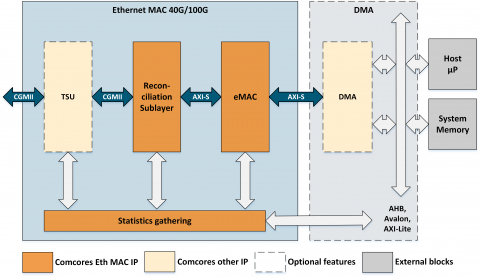

Block Diagram of the Ethernet MAC 40G/100G
