Ethernet MAC 10M/100M/1G/2.5G
Comcores Ethernet MAC 10M/100M/1G/2.5G IP solution enables the host to communicate data using the IEEE 802.3 standard for the respective speeds and is suited for use in networking equipment such as switches and routers. Comcores Ethernet MAC is silicon-proven and designed for easy integration into ASICs and FPGAs.
The Client-side interface is AXI-S and comes with GMII, RGMII or MII interfaces on the PHY side. The Ethernet MAC IP features a compact and low latency solution, it is highly configurable and can optionally include IEEE 1588 Timestamping Unit (TSU). The Ethernet MAC IP is prepared for easy integration with Comcores Ethernet PCS 10M/100M/1G/2.5G IP solution.
The Client-side interface is AXI-S and comes with GMII, RGMII or MII interfaces on the PHY side. The Ethernet MAC IP features a compact and low latency solution, it is highly configurable and can optionally include IEEE 1588 Timestamping Unit (TSU). The Ethernet MAC IP is prepared for easy integration with Comcores Ethernet PCS 10M/100M/1G/2.5G IP solution.
查看 Ethernet MAC 10M/100M/1G/2.5G 详细介绍：
- 查看 Ethernet MAC 10M/100M/1G/2.5G 完整数据手册
- 联系 Ethernet MAC 10M/100M/1G/2.5G 供应商

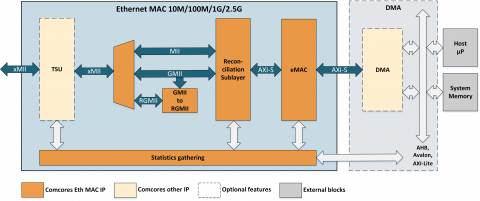

Block Diagram of the Ethernet MAC 10M/100M/1G/2.5G
