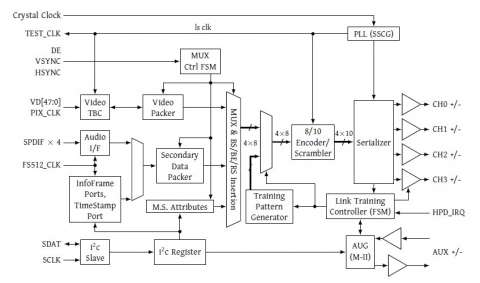

eDP 1.4 Transmitter

特色

Compliant with Embedded DisplayPort 1.4 specification
Main Link supports 1, 2 or 4 lanes at 1.62Gbps, 2.7Gbps and 5.4Gbps
4 channel S/PDIF Digital Audio Input
Supports Enhanced Framing Mode
Automatic Link-Training with option of firmwarecontrolled Link-Training procedure
Supports Fast Link Training
Supports AUX Channel for Access of DPCD and EDID
Supports Deep-Color up to 48-bit RGB/YCbCr Digital Video Transport
Supports Advanced Link Power Management
Supports GTC function
Supports Panel Self Refresh function
