eDisplay Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 22ULP
eDP/DP Tx PHY is designed for chips that perform eDP/DP data communication while operating at low power consumption. The main link is a multi-gigabit transmitter macro which enable speed up to 4.0Gbps data transmitter with optimized power and die size, also it can be easily fabricated and implemented in a video system. The AUX channel is a half-duplex, bidirectional channel consisting of one differential pair, supporting the bit rate of about 1Mbps.
查看 eDisplay Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 22ULP 详细介绍：
- 查看 eDisplay Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 22ULP 完整数据手册
- 联系 eDisplay Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 22ULP 供应商

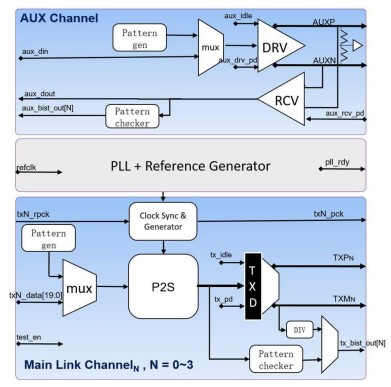

Block Diagram of the eDisplay Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 22ULP
