DVB-T/H Modulator
The MVD DVB-T/H modulator is a drop-in module that includes the following functions :
· Input data framer from DVB-SPI source (MPEG-TS flow)
· DVB-T/H modulator (Energy dispersal, Reed Solomon encoder, Convolutional interleaver, FEC convolution encoder, Inner interleaver, QPSK/QAM symbol mapper, Framer with pilots & TPS inserter, IFFT and guard interval insertion)
· Flexible Digital Upsampler
· Modulator for IF output
· Output for simple DAC (14 bits) or baseband outputs (2x16bits)
· Input data framer from DVB-SPI source (MPEG-TS flow)
· DVB-T/H modulator (Energy dispersal, Reed Solomon encoder, Convolutional interleaver, FEC convolution encoder, Inner interleaver, QPSK/QAM symbol mapper, Framer with pilots & TPS inserter, IFFT and guard interval insertion)
· Flexible Digital Upsampler
· Modulator for IF output
· Output for simple DAC (14 bits) or baseband outputs (2x16bits)
查看 DVB-T/H Modulator 详细介绍：
- 查看 DVB-T/H Modulator 完整数据手册
- 联系 DVB-T/H Modulator 供应商

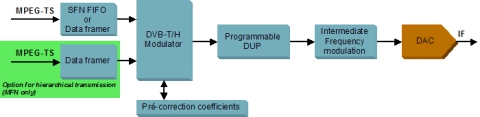

Block Diagram of the DVB-T/H Modulator
