Dual core I & Q Analog to Digital Converter

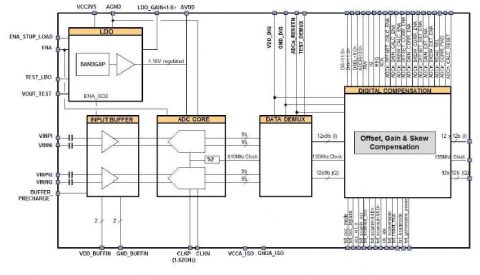

This is a dual core I & Q Analog to Digital Converter based on the Time Interleaved SAR architecture. The IP includes a power supply regulator (LDO), integrated references and digital compensation (for gain, offset and skew). It works in a differential mode for analog input I & Q. The output data are organized in 12x12b–buses clocked at 135MHz (Fs/12). Each bus gives the data coming from a specific sub-ADC. A data ready clock is provided at 135MHz (Fs/12).The input buffers I & Q and the LDO are in G02.The Core ADC and the Digital Compensation are in GO1.
