DSC 1.2b Encoder
The Qualitas DSC 1.2b Encoder is an efficient video compression IP that complies with the VESA Display Stream Compression (DSC) 1.2b standard. Optimized for low power consumption and compact size, this IP delivers real-time, visually lossless video encoding for high-bandwidth display applications. It is compatible with several transport standards, including MIPI DSI-2 1.1, DisplayPort 1.4, and HDMI 2.1.
The encoder supports all DSC 1.2b coding schemes, such as MMAP, BP, MPP, and ICH, and handles multiple color formats including YCbCr 4:4:4, 4:2:2, 4:2:0, and RGB. Additionally, the core is cost-effective and scalable, meeting the demands of higher resolution or higher frame rate displays, and supports up to 2-slice encoding.
The encoder supports all DSC 1.2b coding schemes, such as MMAP, BP, MPP, and ICH, and handles multiple color formats including YCbCr 4:4:4, 4:2:2, 4:2:0, and RGB. Additionally, the core is cost-effective and scalable, meeting the demands of higher resolution or higher frame rate displays, and supports up to 2-slice encoding.
查看 DSC 1.2b Encoder 详细介绍:
- 查看 DSC 1.2b Encoder 完整数据手册
- 联系 DSC 1.2b Encoder 供应商

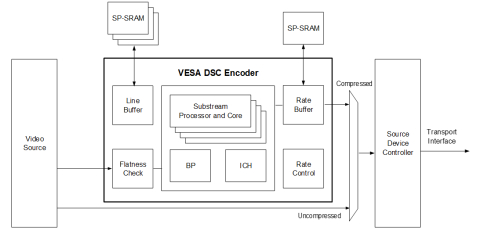

Block Diagram of the DSC 1.2b Encoder
![DSC 1.2b Encoder Block Diagam](http://www.design-reuse.com/sip/blockdiagram/54869/20240718024945-main----2024-07-18-094545.png)
