DSC 1.2b Decoder
The DSC 1.2b Decoder is an efficient video decompression IP that complies with the VESA Display Stream Compression (DSC) 1.2b standard. Optimized for low power consumption and compact size, this IP delivers real-time, visually lossless stream decoding for high-bandwidth display applications. It is compatible with several transport standards, including MIPI DSI-2 1.1, DisplayPort 1.4, and HDMI 2.1. The decoder supports all DSC 1.2b coding schemes, such as MMAP, BP, MPP, and ICH, and handles multiple color formats including YCbCr 4:4:4, 4:2:2, 4:2:0, and RGB. Additionally, the core is cost-effective and scalable, meeting the demands of higher resolution or higher frame rate displays, and supports up to 4-slice decoding.
查看 DSC 1.2b Decoder 详细介绍：
- 查看 DSC 1.2b Decoder 完整数据手册
- 联系 DSC 1.2b Decoder 供应商

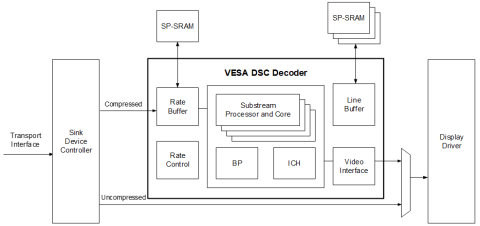

Block Diagram of the DSC 1.2b Decoder
