Driver Amplifier operating from 35 - 39 GHz and can be used in Ka band applications or to drive the high power amplifier

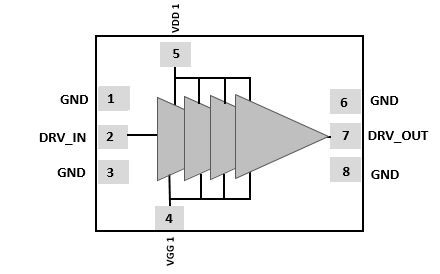

RFDA13C Driver Amplifier operates from 35 - 39 GHz and can be used in Ka band applications or to drive the high power amplifier. The amplifier provides 15 dB small signal gain and 23 dBm of Output P1dB. The input and output are matched to 50 ohms with on-chip DC blocking capacitors. The device is specifically designed to use in point-to-point radios, cellular backhaul application, 5G RF Transceiver & SATCOM. The technology used to design DA is 0.1um GaAs pHEMT Process. Results are shown in datasheet with all parasitics & coupling effects at desired frequency.
