Display Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 28HPC+
The DisplayPort transmitter PHY version 1.4 supports data rates between 1.62Gbps (RBR) to 5.4Gbps (HBR2). built-in equalizer with programmable analogue features, 100-ohm termination resistors, and common-mode biassing the CDR bandwidth, the regulator voltage, the BGR voltage, and the terminator resistance Support 1.8V/0.9V power supplies for internal analogue signal monitoring and PLL testing.
查看 Display Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 28HPC+ 详细介绍:
- 查看 Display Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 28HPC+ 完整数据手册
- 联系 Display Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 28HPC+ 供应商

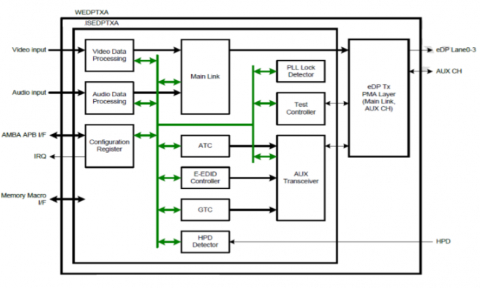

Block Diagram of the Display Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 28HPC+
