DDR5/4 COMBO PHY 7nm/6nm
The DDR5/4 Combo PHY is designed for easy integration into any System-On-Chip (SOC) and can be seamlessly connected with a third-party DFI-compliant DDR5/4 memory controller. Depending on the loading of package and PCB, the DDR5 can be operated up to 6,400Mbps.
Optimized for low power, low latency, high performance and small area, the InPsytech DDR5 and DDR4 combo PHY is provided as a hard macro PHY. Supporting the PHY macro is the RTL based Calibration Accessories for PHY (CAP) for control features such as trainings, read/write leveling, skew controls, PVT compensation and supports for manufacture testing; the CAP also includes an MCU to execute hardware assisted, firmware-based training algorithms.
For further information please contact InPsytech sales representative (sales@inpsytech.com) for details.
Optimized for low power, low latency, high performance and small area, the InPsytech DDR5 and DDR4 combo PHY is provided as a hard macro PHY. Supporting the PHY macro is the RTL based Calibration Accessories for PHY (CAP) for control features such as trainings, read/write leveling, skew controls, PVT compensation and supports for manufacture testing; the CAP also includes an MCU to execute hardware assisted, firmware-based training algorithms.
For further information please contact InPsytech sales representative (sales@inpsytech.com) for details.
查看 DDR5/4 COMBO PHY 7nm/6nm 详细介绍：
- 查看 DDR5/4 COMBO PHY 7nm/6nm 完整数据手册
- 联系 DDR5/4 COMBO PHY 7nm/6nm 供应商

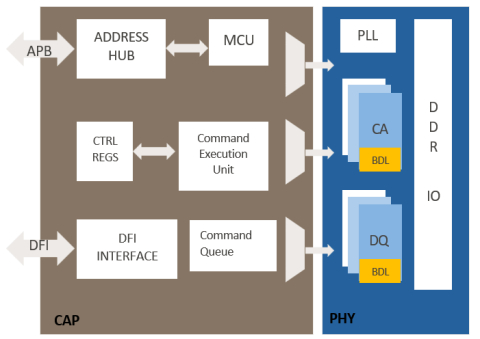

Block Diagram of the DDR5/4 COMBO PHY 7nm/6nm
