Cross-Correlator Matrix 64x64
PMCC_XCM_64x64_D IP block is a low-power array of 1GHz clocked Cross-Correlator cells that are synchronously acquiring two sets of 64x2-bit data streams which are derived by digitizing IF signals at a 2-bit precision. The IP block is cross-correlating and preparing the data for further processing.
The PMCC_XCM_64x64_D IP block consists of 4096 cross-correlation cells, 64 vertical totalizers, 64 horizontal totalizers, an output multiplexer, a control circuit and the I2C slave controller with registers.
The input data {-3, -1, 1, 3} from two arms is supplied to the cross-correlation cell (XCC) which includes a multiplication unit implemented as a look-up table (LUT). There are five possible result values {0, 2, 3, 4, 6}. Therefore, each LUT has 4 binary inputs and a 3-bit correlation result. The outputs of LUTs are used as input data for counters, which count each input number. To ensure 10ms integration time, 26-bit counters are required. Power efficient ripple counters are employed for this purpose. The result of the cross-correlation is stored in the counters ready to be transmitted through common bus on demand.
The purpose of totalizers (TOTs) is to count the number of occurrences of each possible two-bit input value {-3, -1, 1, 3}. There are 64 vertical (TOTV) and 64 horizontal (TOTH) totalizers. A separate TOT is employed for each input channel. The TOT consists of a multiplication unit (LUT) and four 26-bit synchronous counters.
During the readout mode correlated data comes by the line to the multiplexer (MUX) with serialized 8 bit output. Optionally, an external clock can be applied to control the reading data rate.
The PMCC_XCM_64x64_D IP block consists of 4096 cross-correlation cells, 64 vertical totalizers, 64 horizontal totalizers, an output multiplexer, a control circuit and the I2C slave controller with registers.
The input data {-3, -1, 1, 3} from two arms is supplied to the cross-correlation cell (XCC) which includes a multiplication unit implemented as a look-up table (LUT). There are five possible result values {0, 2, 3, 4, 6}. Therefore, each LUT has 4 binary inputs and a 3-bit correlation result. The outputs of LUTs are used as input data for counters, which count each input number. To ensure 10ms integration time, 26-bit counters are required. Power efficient ripple counters are employed for this purpose. The result of the cross-correlation is stored in the counters ready to be transmitted through common bus on demand.
The purpose of totalizers (TOTs) is to count the number of occurrences of each possible two-bit input value {-3, -1, 1, 3}. There are 64 vertical (TOTV) and 64 horizontal (TOTH) totalizers. A separate TOT is employed for each input channel. The TOT consists of a multiplication unit (LUT) and four 26-bit synchronous counters.
During the readout mode correlated data comes by the line to the multiplexer (MUX) with serialized 8 bit output. Optionally, an external clock can be applied to control the reading data rate.
查看 Cross-Correlator Matrix 64x64 详细介绍：
- 查看 Cross-Correlator Matrix 64x64 完整数据手册
- 联系 Cross-Correlator Matrix 64x64 供应商

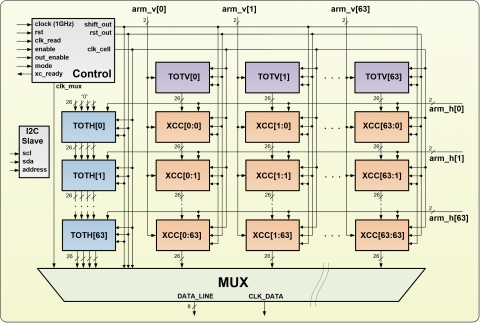

Block Diagram of the Cross-Correlator Matrix 64x64
