CPRI over OTN Processor
The Orion IPL8001MX IP Core is a member of Tera-Pass’ product line for the optical infrastructure required to support cellular traffic. Orion IPL8001MX IP Cores are optimized for Mobile Front-Haul (MFH) networks.
Orion IPL8001MX OTN processors implement the novel ITU-T SG15 Q.11 Sup 56 Section 8 CPRIm multiplexing method for the transport of CPRI signals over OTN bearers. This scheme optimizes the transport of CPRI (Common Public Radio Interface) signals between RRH (Remote Radio Head) and centralized BBU (Base Band Unit) sites. The IPL8001MX includes optional Forward Error Correction (FEC) and supports CPRI signals Option 3, 4 and 5.
Tera-Pass’ Orion CPRI over OTN IP Core Processors have been optimized for the effective transport of CPRI signals over fiber networks between RRH and BBU sites. An Orion IPL8001MX OTN processor combines up to 6 CPRI-3/4/5 signals into a single CPRIm aggregate that is then synchronously mapped into an OPU2r container and is presented to the line port as either a 12.6Gbps OTU2r or 11.8Gbps OTU2r No FEC signal.
Tera-Pass’ Orion IPL8101TX Processors have been optimized for the effective transport of CPRI signals over fiber networks between RRH and BBU sites. An Orion IPL8101TX OTN processor maps CPRI-7/8/9 signals into an OPU2r container that is presented to the line port as either a 12.6Gbps OTU2r or 11.8Gbps OTU2r No FEC signal.
Orion IPL8001MX OTN processors implement the novel ITU-T SG15 Q.11 Sup 56 Section 8 CPRIm multiplexing method for the transport of CPRI signals over OTN bearers. This scheme optimizes the transport of CPRI (Common Public Radio Interface) signals between RRH (Remote Radio Head) and centralized BBU (Base Band Unit) sites. The IPL8001MX includes optional Forward Error Correction (FEC) and supports CPRI signals Option 3, 4 and 5.
Tera-Pass’ Orion CPRI over OTN IP Core Processors have been optimized for the effective transport of CPRI signals over fiber networks between RRH and BBU sites. An Orion IPL8001MX OTN processor combines up to 6 CPRI-3/4/5 signals into a single CPRIm aggregate that is then synchronously mapped into an OPU2r container and is presented to the line port as either a 12.6Gbps OTU2r or 11.8Gbps OTU2r No FEC signal.
Tera-Pass’ Orion IPL8101TX Processors have been optimized for the effective transport of CPRI signals over fiber networks between RRH and BBU sites. An Orion IPL8101TX OTN processor maps CPRI-7/8/9 signals into an OPU2r container that is presented to the line port as either a 12.6Gbps OTU2r or 11.8Gbps OTU2r No FEC signal.
查看 CPRI over OTN Processor 详细介绍：
- 查看 CPRI over OTN Processor 完整数据手册
- 联系 CPRI over OTN Processor 供应商

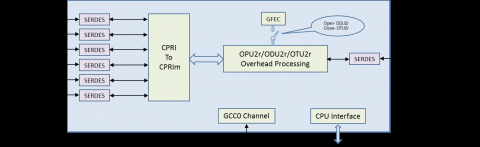

Block Diagram of the CPRI over OTN Processor
