Configurable Watchdog Timer (WD)
A watchdog is used in systems to prevent system lockup due to software or hardware failures. For normal operation, the timeout counter has to be reset by the CPU in a regular interval. Depending on the watchdog configuration, the watchdog asserts the reset_req and int_req outputs upon expiration of the timeout counters.
To avoid malfunction software to reconfigure the watchdog, all configuration registers are protected by a special lock key. The timeout interval can be configured over a wide range:
* min: 65536 system clock cycles
* max: 67'108'864 system clock cycles
Using a system clock of 40MHz, this results in a timeout window of 1.6ms – 1.67s.
To avoid malfunction software to reconfigure the watchdog, all configuration registers are protected by a special lock key. The timeout interval can be configured over a wide range:
* min: 65536 system clock cycles
* max: 67'108'864 system clock cycles
Using a system clock of 40MHz, this results in a timeout window of 1.6ms – 1.67s.
查看 Configurable Watchdog Timer (WD) 详细介绍：
- 查看 Configurable Watchdog Timer (WD) 完整数据手册
- 联系 Configurable Watchdog Timer (WD) 供应商

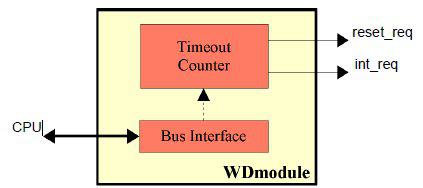

Block Diagram of the Configurable Watchdog Timer (WD)
