Configurable Cross Converter

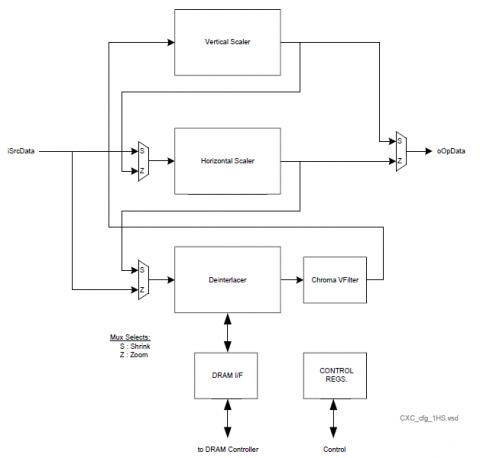

The Configurable Cross Converter is a parameterized integration of the VPC-1 Deinterlacer and VSC-1 Scaler IP cores along with all circuitry necessary to interface to a DRAM controller. The Configurable Cross Converter greatly simplifies using the VPC-1 and VSC-1 in a wide range of applications. All build-time parameters supported by the VPC-1 and VSC-1 are available at the top level of the CXC-1. Additional build-time parameters are provided to include or exclude certain processing blocks. This allows, for example, the CXC-1 to be configured as a full up/down/cross converter or as a deinterlacer only or a scaler only.
