ColdFire V4 SPPC1 Processor Platform
The ColdFire V4 SPPC1 Processor Platform combines the ColdFire V4 Core with industry-proven platform peripherals to form a complete high-performance microcontroller subsystem supported by a vast ecosystem of development tools and runtime software. With the ColdFire V4 SPPC1 Processor Platform, you get:
• Performance—over 500 DMIPS at 345 MHz
• Reliability—from processor and peripheral IP already deployed
in millions of embedded systems worldwide
• Rapid time-to-market—in just a few hours you can be developing
software on your own FPGA implementation of the ColdFire V4 SPPC1 Processor Platform
The ColdFire V4 SPPC1 Processor Platform includes ColdFire V4 Core, plus the fully-integrated peripherals shown in Figure 1, implementing functions commonly needed for embedded systems including interrupt control, DMA, timers, and various serial interfaces. An AMBA 2 AHB Crossbar Switch provides the system interconnect, supporting simultaneous AHB transfers between multiple masters and slaves, including externally-connected AHB masters and slaves.
Variations of the ColdFire V4 SPPC1 Processor Platform with different combinations of on-board peripherals are also available. For example, you can add one or two Ethernet Controllers or you can choose to omit one or more of peripherals to reduce system gate count.
• Performance—over 500 DMIPS at 345 MHz
• Reliability—from processor and peripheral IP already deployed
in millions of embedded systems worldwide
• Rapid time-to-market—in just a few hours you can be developing
software on your own FPGA implementation of the ColdFire V4 SPPC1 Processor Platform
The ColdFire V4 SPPC1 Processor Platform includes ColdFire V4 Core, plus the fully-integrated peripherals shown in Figure 1, implementing functions commonly needed for embedded systems including interrupt control, DMA, timers, and various serial interfaces. An AMBA 2 AHB Crossbar Switch provides the system interconnect, supporting simultaneous AHB transfers between multiple masters and slaves, including externally-connected AHB masters and slaves.
Variations of the ColdFire V4 SPPC1 Processor Platform with different combinations of on-board peripherals are also available. For example, you can add one or two Ethernet Controllers or you can choose to omit one or more of peripherals to reduce system gate count.
查看 ColdFire V4 SPPC1 Processor Platform 详细介绍:
- 查看 ColdFire V4 SPPC1 Processor Platform 完整数据手册
- 联系 ColdFire V4 SPPC1 Processor Platform 供应商

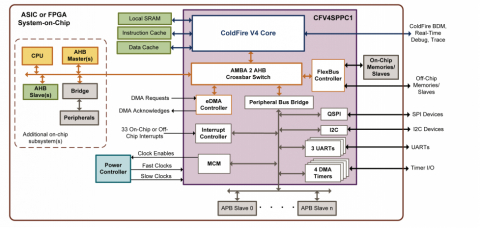

Block Diagram of the ColdFire V4 SPPC1 Processor Platform
Video Demo of the ColdFire V4 SPPC1 Processor Platform
