cjTAG IEEE 1149.7 DTS Adapter

The DTS Adapter from Silvaco enables an existing IEEE 1149.1 debug test system (DTS) to take advantage of the advanced debug/test capabilities available with today’s IEEE 1149.7-enabled semiconductor devices. Offered as a standalone product or as a companion product to our Compact JTAG IP for target systems, the DTS Adapter functions as a JTAG-to-Compact JTAG translator for the debug test system (DTS), supporting debug/test of IEEE 1149.7-compliant target systems.

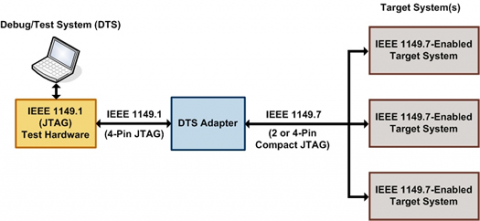

Easily implemented in FPGA or ASIC, the DTS Adapter provides the signal conversion and signal generation needed for existing IEEE 1149.1 (JTAG) test hardware to support IEEE 1149.7 features such as 2-pin operation, online/offline operation, Star topologies, and Scan Topology Training. With the DTS Adapter inserted into your existing IEEE 1149.1 debug/test hardware chain, you only need to upgrade your debug/test software to take full advantage of the advanced test/debug capabilities offered by IEEE 1149.7 enabled semiconductor devices.
