Bluetooth 5.1 low energy Baseband Controller, software and profiles
Ceva-Waves Bluetooth 5.1 low energy IP is a comprehensive and flexible solution for integration into SoCs/ASSPs.
The Ceva-Waves BLE hardware baseband controller core, in charge of packet encoding/decoding and frame scheduling, is complemented by a hardware AES128 encryption engine for real time encryption/decryption of the packets.
The firmware is composed of the Link Layer(LL) and Host Control Interface (HCI). It is provided with reference platform drivers and with a small task scheduler offering task management, inter-task communications, message (queues and events) management and timing management, for use as standalone or integrated into other real time OS.
For a more comprehensive solution, the Ceva-Waves BLE baseband controller IP is complemented with:
the Ceva-Waves BLE host protocol stack and profiles. It can be combined with the firmware of the Ceva-Waves BLE baseband controller to create a fully embedded or fully hosted solution, or run on a separate micro-controller.
the Ceva-Waves BT RF IP. This is a complete radio transceiver including modem compliant with Bluetooth low energy.
The combined Ceva-Waves BLE firmware and Ceva-Waves BLE host protocol stack and profiles form a highly flexible solution supporting 3 different configurations:
Fully hosted configuration: all software is running on the same embedded processor. There is no HCI. Alternatively, the complete software can run on a host/application processor, driving a CPU-less BLE IC containing the Ceva-Waves BLE baseband controller core.
Split configuration: lower layers below HCI are running on the embedded processor while the upper layers above HCI are running on the host/application processor.
Fully embedded configuration: all software is running on the embedded processor, while the application is running on the host/application processor.
A processor agnostic turnkey fully integrated platform with embedded open source RISC-V processor is also proposed as a cost effective and short time to market alternative solution.
The Ceva-Waves BLE host protocol stack and profiles can also be used with any Bluetooth low energy HCI controller IC.
The Ceva-Waves BLE hardware baseband controller core, in charge of packet encoding/decoding and frame scheduling, is complemented by a hardware AES128 encryption engine for real time encryption/decryption of the packets.
The firmware is composed of the Link Layer(LL) and Host Control Interface (HCI). It is provided with reference platform drivers and with a small task scheduler offering task management, inter-task communications, message (queues and events) management and timing management, for use as standalone or integrated into other real time OS.
For a more comprehensive solution, the Ceva-Waves BLE baseband controller IP is complemented with:
The combined Ceva-Waves BLE firmware and Ceva-Waves BLE host protocol stack and profiles form a highly flexible solution supporting 3 different configurations:
A processor agnostic turnkey fully integrated platform with embedded open source RISC-V processor is also proposed as a cost effective and short time to market alternative solution.
The Ceva-Waves BLE host protocol stack and profiles can also be used with any Bluetooth low energy HCI controller IC.
查看 Ceva-Waves Bluetooth 5.1 low energy Baseband Controller, software and profiles 详细介绍：
- 查看 Ceva-Waves Bluetooth 5.1 low energy Baseband Controller, software and profiles 完整数据手册
- 联系 Ceva-Waves Bluetooth 5.1 low energy Baseband Controller, software and profiles 供应商

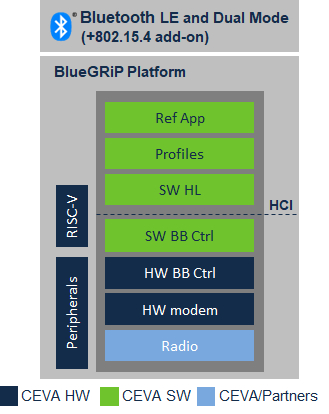

Block Diagram of the Ceva-Waves Bluetooth 5.1 low energy Baseband Controller, software and profiles
