Ceva-Waves 802.11ax (Wi-Fi 6) 1x1 20MHz STA Low Power MAC & modem
This Ceva-Waves Wi-Fi 6 802.11ax IP is part of the Ceva-Waves Wi-Fi Low Power category, targeted at IoT peripherals, including wearables, medical devices, wireless audio and other use cases where power and cost are critical factors. This is the industry’s smallest footprint and lowest power Wi-Fi IP compliant with 802.11ax (Wi-Fi 6) 1x1 20MHz and 20/40MHz STAs.
The Ceva-Waves Wi-Fi 6 Low Power IP consists of 802.11ax MAC and modem cores, restricted to 1x1 SISO with 20MHz or 20/40MHz bandwidths configurations, supporting STA and Soft AP modes. The MAC is controlled by a LMAC+UMAC (aka FullMAC) software protocol stack. The IP is provided with an integration-ready processor and operating-system- agnostic platform, simplifying deployment in SoC/ASSP designs. The Wi-Fi software protocol stack can be executed on any processor such as ARM, ARC, Andes, Cortus, RISC-V and others.
The Ceva-Waves Wi-Fi 6 platform can be used in a standalone single processor chip or integrated into a bigger microcontroller with an application processor.
For more comprehensive solution, the Ceva-Waves Wi-Fi 6 IP is well complemented with Ceva-DSP such as the Ceva-BX1/2, to execute audio processing or other always on sensor hub.
Silicon independent, the Ceva-Waves Wi-Fi 6 Low Power IP supports several radio IPs from various partners such as Sirius Wireless. Other RF can be easily supported on customer demand.
查看 Ceva-Waves 802.11ax (Wi-Fi 6) 1x1 20MHz STA Low Power MAC & modem 详细介绍:
- 查看 Ceva-Waves 802.11ax (Wi-Fi 6) 1x1 20MHz STA Low Power MAC & modem 完整数据手册
- 联系 Ceva-Waves 802.11ax (Wi-Fi 6) 1x1 20MHz STA Low Power MAC & modem 供应商

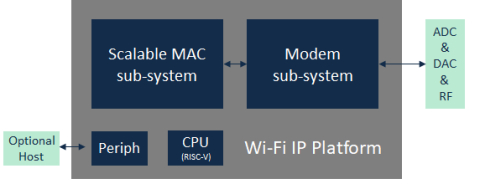

Block Diagram of the Ceva-Waves 802.11ax (Wi-Fi 6) 1x1 20MHz STA Low Power MAC & modem
