CCSDS (8160,7136) LDPC Encoder
The LDPC Encoder is a fully compatible CCSDS rate 223/255 (8160,7136) LDPC error control encoder.
A regular quasic–cyclic LDPC code with 511x511 square circulants with weight 2 in the parity check matrix is used. There are 2x16 circulants, resulting in a check node degree of 32 and a variable node degree of 4.
A regular quasic–cyclic LDPC code with 511x511 square circulants with weight 2 in the parity check matrix is used. There are 2x16 circulants, resulting in a check node degree of 32 and a variable node degree of 4.
查看 CCSDS (8160,7136) LDPC Encoder 详细介绍：
- 查看 CCSDS (8160,7136) LDPC Encoder 完整数据手册
- 联系 CCSDS (8160,7136) LDPC Encoder 供应商

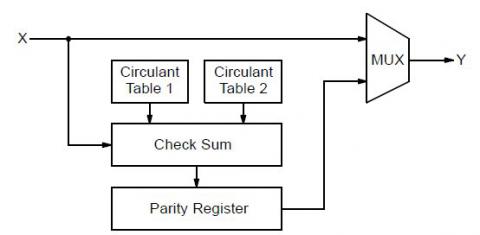

Block Diagram of the CCSDS (8160,7136) LDPC Encoder
