Capacitor-less Low Dropout regulator (LDO) 30 mA output
The ICPMLDO101_GF22FDX is capacitor-less linear voltage regulator in GF 22nmFDX. The LDO operates for a single input voltage in the range 1.4V to 1.9V. The regulated output voltage range is 0.8V to 1.2V. The reference voltage is supplied externally, and its value is 0.7V.
查看 Capacitor-less Low Dropout regulator (LDO) 30 mA output 详细介绍：
- 查看 Capacitor-less Low Dropout regulator (LDO) 30 mA output 完整数据手册
- 联系 Capacitor-less Low Dropout regulator (LDO) 30 mA output 供应商

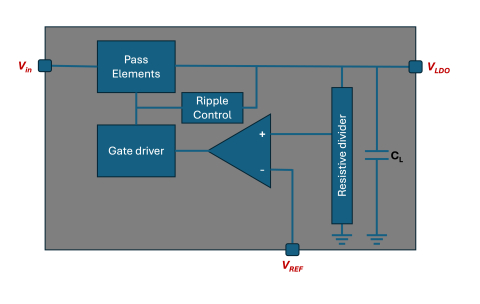

Block Diagram of the Capacitor-less Low Dropout regulator (LDO) 30 mA output
