CANsec Acceleration Engine
The CANsec specification provisions two ciphers with key lengths of 128, 192, or 256 bits to protect CAN XL frames’ payload, all of which are supported by the hardware accelerator. Specifically, the core secures frames exchanged over CAN bus networks using AES-CMAC to protect integrity and authenticity and AES-GCM to additionally protect confidentiality. CANsec also secures communication between different groups of nodes physically connected on the same bus using the concept of secure channels, where each channel uses a different encryption key and freshness value. The CAN-SEC core enables its host system to participate in up to 256 secure channels.

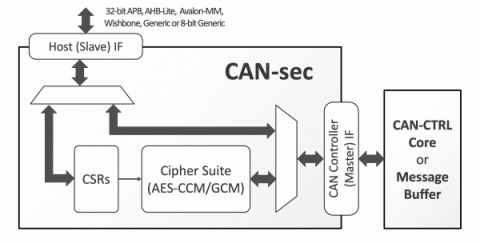

This CANsec hardware accelerator has been designed for ease of integration. It presents itself as a peripheral that communicates to the host system via a generic 32-bit memory-mapped slave interface and a configurable interrupt line. The core is delivered with bridges that convert this generic host interface to a generic 8-bit memory mapped interface, or to a 32-bit APB, AHB-Lite, Avalon-MM, or Wishbone interface. Its operation is also rather simple: the host puts the CANsec or CAN XL messages to be processed in a buffer mapped on the core’s address space, and the core returns the processed CAN XL or CANsec message to the same buffer and notifies the host. The message buffer can be implemented by means of a simple SRAM attached to the CAN-SEC core via a master memory mapped port. This master port can be used to connect the CAN-SEC core to the CAN-CTRL CAN controller core available from CAST. In this case, the CAN-SEC accesses the CAN controller’s message buffers, saving the extra message buffer space and message transfers.
Consistent with CAST’s quality standards, this core has been rigorously verified, is LINT-clean and scan-ready, and is delivered with everything required for a trouble-free implementation. It is available in System Verilog RTL source code or as a targeted FPGA netlist, and its deliverables include a sophisticated testbench, sample synthesis and simulation scripts, and comprehensive documentation.
