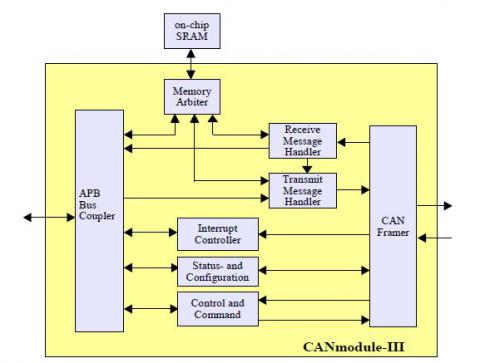

The CAN Bus Controller with Message Filter is a full functional CAN controller module that supports the concept of mailboxes. It is compliant to the international CAN standard defined in ISO 11898-1.
The CAN Bus Controller contains 16 receive buffers, each one with its own message filter, and 8 transmit buffers with prioritized arbitration scheme. For optimal support of Higher Level Protocols (HLP) such as DeviceNet or SDC, the message filter covers the first two data bytes as well.
The design is written in technology independent HDL and can be mapped to ASIC and FPGA architectures and makes use of on-chip SRAM structures. An AMBA Advanced Peripheral Bus (APB) interface enables smooth integration into ARM based SOC’s. This full synchronous bus interface can easily be connect to other system buses.
