Cable Modulator J.83 Annex B
The MVD cable modulator J83B core is a drop-in module that includes the following functions :
• Input data framer from DVB-SPI source (MPEG-TS flow)
• J83B modulator
- Checksum
- Reed-Solomon encoder
- Interleaver
- Trellis Coded Modulation
• Output for complex DAC (2 x 8 bits)
The MVD cable modulator J83B core is delivered for baseband output to be natively connected to AD9789 DAC from Analog Devices but can be used in Intermediate Frequency application (for Analog Devices (AD9744)) or in RF application when espectively connected to our UPSAMPLER or our PCONVERTER core (for Analog Devices (AD9739A) or Maxim RF DACs (MAX5881))
• Input data framer from DVB-SPI source (MPEG-TS flow)
• J83B modulator
- Checksum
- Reed-Solomon encoder
- Interleaver
- Trellis Coded Modulation
• Output for complex DAC (2 x 8 bits)
The MVD cable modulator J83B core is delivered for baseband output to be natively connected to AD9789 DAC from Analog Devices but can be used in Intermediate Frequency application (for Analog Devices (AD9744)) or in RF application when espectively connected to our UPSAMPLER or our PCONVERTER core (for Analog Devices (AD9739A) or Maxim RF DACs (MAX5881))
查看 Cable Modulator J.83 Annex B 详细介绍：
- 查看 Cable Modulator J.83 Annex B 完整数据手册
- 联系 Cable Modulator J.83 Annex B 供应商

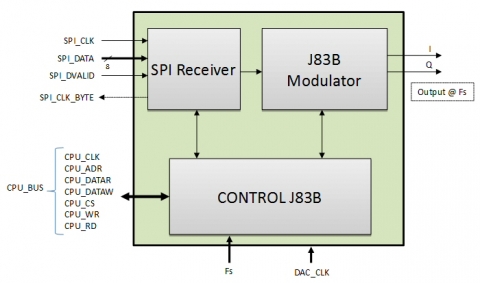

Block Diagram of the Cable Modulator J.83 Annex B
