Bluetooth 5.0 LE,Zigbee, and Sub-GHz Transceiver
The BLE5ZSUBGS40LP RF IP is designed for SMIC 40nm LP Process. It is a cost-effective low power dual-band communication sub-system. It integrates TX/RX Radio (Sub-GHz, BLE 5.0, and Zigbee proprietary solutions), 802.15.4g compliant PHY and low level MAC. BLE5ZSUBGS40LP supports multiple Sub-GHz frequency bands and 2.4 GHz. The optimize modulation provide the good sensitivity in Sub-GHz, Zigbee, and Bluetooth 5 LE solution. The long range mode in Sub-GHz can transfer data over 2 KM.
特色
- 1. Sub-GHz bands : up to request
- 2. BLE 5.0 TX power: +10dBm, RX sensitivity: -98 dBm
- 3. Sub-GHz TX power: +20 dBm, RX sensitivity: -120 dBm
- 3. Compliant with 802.15.1, 802.15.4, and 802.15.4g
- 4. Sub-GHz and 2.4 GHz with separate antenna
- 5. FSK,2FSK, 2GFSK, GFSK, BPSK, and O-QPSK modulations
- 6. Sub-GHz TX Current consumption 433MHz: 85mA @ +20dBm
- 7. Low power: Ideep sleep mode = 0.8uA and Isleep mode = 1.2uA
- 8. Programmable data rate from 5 Kbps to 2 Mbps
- 9. RSSI read-out
- 10. Sub-GHz long range: ~2 KM
- 11. Internal 32.768 KHz Oscillator
- 12. Compliant with Bluetooth 5 LE Specification
- 13. Security : CRC, AES128/196/256
- 14. Operating Temperature: -40C~85C

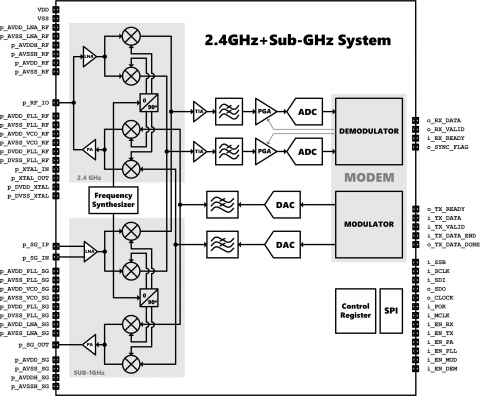

Block Diagram of the Bluetooth 5.0 LE,Zigbee, and Sub-GHz Transceiver
