BLE v5.0 RF PHY KGD 和 IP
集成的BLE链路层能够支持2Mbps的蓝牙数据速率,实现高速和长距离蓝牙连接,连接范围约为100米.
与MCU芯片或SOC芯片的连接、与集成AES数据加密解密引擎的连接,均可通过标准SPI接口配合片选及分组同步管脚完成,整个方案不需要额外RAM、ROM或闪存等存储器件的支持.
这个设计集成到任何一种规格的嵌入式MCU系统.
Availability
封装射频芯片
已知良好模具(KGD):与SIP中的微控制器堆叠
RF IP:GDSII,技术转让
产线转移
一站式ASIC设计服务:采用核心蓝牙IP,设计相关的蓝牙芯片
查看 BLE v5.0 RF PHY KGD 和 IP 详细介绍:
- 查看 BLE v5.0 RF PHY KGD 和 IP 完整数据手册
- 联系 BLE v5.0 RF PHY KGD 和 IP 供应商

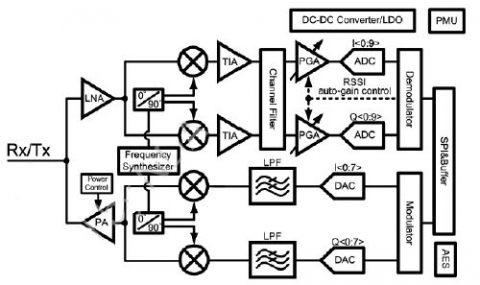

Block Diagram of the BLE v5.0 RF PHY KGD 和 IP
