Bandgap Voltage Reference - TSMC12/16nm CMOS FinFET
1-VIA’s VSCOM4l400ABG IP is a 1.8V low-noise unbuffered programmable 0.6 and 0.8V Bandgap Voltage References (BGR) with eight 50μA reference output currents implemented in TSMC12/16nm CMOS FinFET technology.
Its low noise, flat temperature characteristics and precision make it suitable for both integrated global and local voltage references.
Its low noise, flat temperature characteristics and precision make it suitable for both integrated global and local voltage references.
查看 Bandgap Voltage Reference (0.6V and 0.8V References) 详细介绍：
- 查看 Bandgap Voltage Reference (0.6V and 0.8V References) 完整数据手册
- 联系 Bandgap Voltage Reference (0.6V and 0.8V References) 供应商

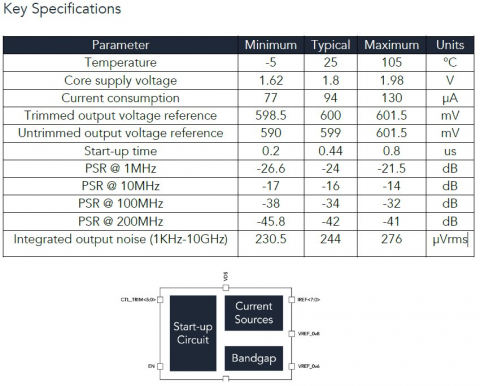

Block Diagram of the Bandgap Voltage Reference (0.6V and 0.8V References)
