ATSC - 8VSB Modulator
The MVD ATSC core is a drop-in module for FPGA that includes the following functions:
- Input data framer from DVB-SPI source (MPEG-TS flow)
- ATSC modulator
- Energy dispersal
- Reed Solomon encoder
- Interleaver
- Trellis encoder
- VSB modulator
- Output for complex DAC (2x16bits)
The MVD ATSC modulator core is delivered for baseband output to be natively connected to AD9789 DAC from Analog Devices but can be used in Intermediate Frequency application (for Analog Devices (AD9744)) or in RF application when respectively connected to our UPSAMPLER or our PCONVERTER core (forAnalog Devices (AD9739A) or Maxim RF DACs (MAX5881))
- Input data framer from DVB-SPI source (MPEG-TS flow)
- ATSC modulator
- Energy dispersal
- Reed Solomon encoder
- Interleaver
- Trellis encoder
- VSB modulator
- Output for complex DAC (2x16bits)
The MVD ATSC modulator core is delivered for baseband output to be natively connected to AD9789 DAC from Analog Devices but can be used in Intermediate Frequency application (for Analog Devices (AD9744)) or in RF application when respectively connected to our UPSAMPLER or our PCONVERTER core (forAnalog Devices (AD9739A) or Maxim RF DACs (MAX5881))
查看 ATSC - 8VSB Modulator 详细介绍：
- 查看 ATSC - 8VSB Modulator 完整数据手册
- 联系 ATSC - 8VSB Modulator 供应商

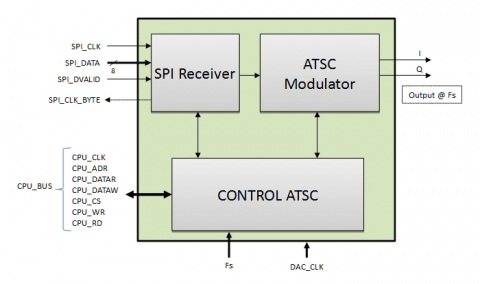

Block Diagram of the ATSC - 8VSB Modulator
